Belden Equivalent Cable
30
Result |
|
|
C1320016133 (SC-8723) *Reference to Belden 8723 Control Cable Shielded 22AWG 2P PVC Sheath
22AWG Stranded TACW, 2 Twisted Pairs, PP Insulation, Al. Polyester Tape Pair Screen,
24AWG Stranded TACW Drain Wire, PVC Sheath. (Grey) O.D 4.2mm |
![](../images/View_Construction.jpg) |
|
|
C1320017333 (SC-8723/LS) *Reference to Belden 8723 Fire Retardant Control Cable Shielded 22AWG 2P LSHF Sheath
22AWG Stranded TACW, 2 Twisted Pairs, PP Insulation, Al. Polyester Tape Pair Screen,
24AWG Stranded TACW Drain Wire, LSHF Sheath. (Grey)
O.D 4.2mm |
![](../images/View_Construction.jpg) |
|
|
C1330084133 (SC-8760) *Reference to Belden 8760 Control Cable Shielded 18AWG 1P PVC Sheath
18AWG Stranded TACW, Single Twisted Pairs, PE Insulation, Al. Polyester Tape Overall Screen, 20AWG Stranded TACW Drain Wire, PVC Sheath. (Grey) O.D 5.64mm |
![](../images/View_Construction.jpg) |
|
|
C1330085333 (SC-8760/LS) *Reference to Belden 8760 Fire Retardant Control Cable Shielded 18AWG 1P LSHF Sheath
18AWG Stranded TACW, Single Twisted Pairs, PE Insulation, Al. Polyester Tape Overall Screen, 20AWG Stranded TACW Drain Wire, LSHF Sheath. (Grey) O.D 5.64mm |
![](../images/View_Construction.jpg) |
|
|
C1330086133 (SC-8761) *Reference to Belden 8761 Control Cable Shielded 22AWG 1P PVC Sheath
22AWG Stranded TACW, Single Twisted Pairs, PE Insulation, Al. Polyester Tape Overall Screen, 22AWG Stranded TACW Drain Wire, PVC Sheath. (Grey) O.D 4.45mm |
![](../images/View_Construction.jpg) |
|
|

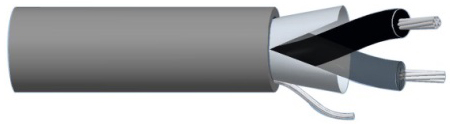

C1330087333 (SC-8761/LS) *Reference to Belden 8761 Fire Retardant Control Cable Shielded 22AWG 1P LSHF Sheath
22AWG Stranded TACW, Single Twisted Pairs, PE Insulation, Al. Polyester Tape Overall Screen, 22AWG Stranded TACW Drain Wire, LSHF Sheath. (Grey) O.D 4.45mm |
![](../images/View_Construction.jpg) |
|
|

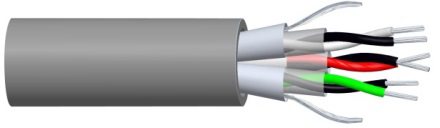

C1320028133 (SC-8777) *Reference to Belden 8777 Control Cable Shielded 22AWG 3P PVC Sheath
22AWG Stranded TACW, 3 Twisted Pairs, PP Insulation, Al. Polyester Tape Pair Screen,
22AWG Stranded TACW Drain Wire, PVC Sheath. (Grey)
O.D 6.5mm |
![](../images/View_Construction.jpg) |
|
|

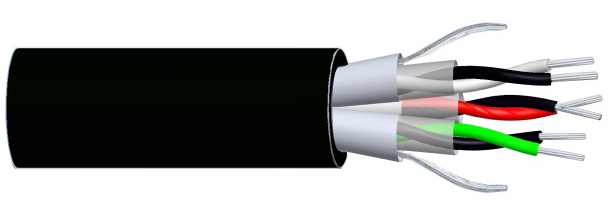

C1320026311 (SC-8777/LS) *Reference to Belden 8777 Fire Retardant Control Cable Shielded 22AWG 3P LSHF Sheath
22AWG Stranded TACW, 3 Twisted Pairs, PP Insulation, Al. Polyester Tape Pair Screen,
22AWG Stranded TACW Drain Wire, LSHF Sheath. (Black) O.D 6.5mm |
![](../images/View_Construction.jpg) |
|
|

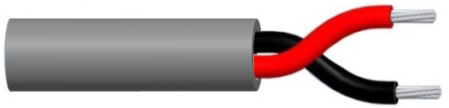

C6110067133 (SP8442) *Reference to Belden 8442 Speaker Cable 22AWG 1P PVC Sheath
22AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 4.4mm |
![](../images/View_Construction.jpg) |
|
|

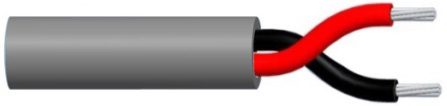

C6110073333 (SP8442/LS) *Reference to Belden 8442 Fire Retardant Speaker Cable 22AWG 1P LSHF Sheath
22AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 4.4mm |
![](../images/View_Construction.jpg) |
|
|

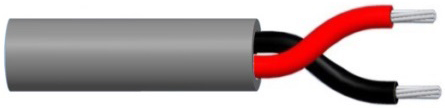

C6110068133 (SP8205) *Reference to Belden 8205 Speaker Cable 20AWG 1P PVC Sheath
20AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 4.6mm |
![](../images/View_Construction.jpg) |
|
|

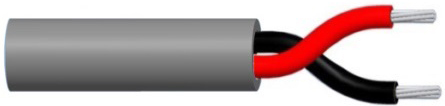

C6110074333 (SP8205/LS) *Reference to Belden 8205 Fire Retardant Speaker Cable 20AWG 1P LSHF Sheath
20AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 4.6mm |
![](../images/View_Construction.jpg) |
|
|
C6110069133 (SP8461-1P) *Reference to Belden 8461 Speaker Cable 18AWG 1P PVC Sheath
18AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 6.0mm |
![](../images/View_Construction.jpg) |
|
|
C6110075333 (SP8461-1P/LS) *Reference to Belden 8461 Fire Retardant Speaker Cable 18AWG 1P LSHF Sheath
18AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 6.0mm |
![](../images/View_Construction.jpg) |
|
|
C6110070133 (SP8471-1P) *Reference to Belden 8471 Speaker Cable 16AWG 1P PVC Sheath
16AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 7.0mm |
![](../images/View_Construction.jpg) |
|
|
C6110076333 (SP8471-1P/LS) *Reference to Belden 8471 Fire Retardant Speaker Cable 16AWG 1P LSHF Sheath
16AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 7.0mm |
![](../images/View_Construction.jpg) |
|
|

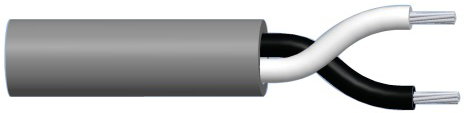

C6110071133 (SP8473-1P) *Reference to Belden 8473 Speaker Cable 14AWG 1P PVC Sheath
14AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 8.6mm |
![](../images/View_Construction.jpg) |
|
|
C6110077333 (SP8473-1P/LS) *Reference to Belden 8473 Fire Retardant Speaker Cable 14AWG 1P LSHF Sheath
14AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 8.6mm |
![](../images/View_Construction.jpg) |
|
|

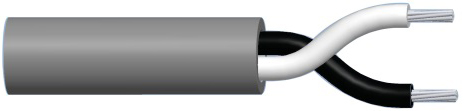

C6110072133 (SP8477-1P) *Reference to Belden 8477 Speaker Cable 12AWG 1P PVC Sheath
12AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, PVC Sheath. (Grey) O.D 9.5mm |
![](../images/View_Construction.jpg) |
|
|
C6110078333 (SP8477-1P/LS) *Reference to Belden 8477 Fire Retardant Speaker Cable 12AWG 1P LSHF Sheath
12AWG Stranded TACW, Single Twisted Pairs, PVC Insulation, LSHF Sheath. (Grey) O.D 9.5mm |
![](../images/View_Construction.jpg) |
|
|
C2010060111 (RG58C/U) *Reference to Belden 8259 Coaxial Cable 50ohm RG58U 20AWG PVC Sheath
20AWG Stranded TACW, PE Insulation, TACW Braiding 95% Coverage, PVC Sheath. (Black) O.D 4.95mm |
![](../images/View_Construction.jpg) |
|
|
C2010076311 (RG58C/U/LS) *Reference to Belden 8259 Fire Retardant Coaxial Cable 50ohm RG58U 20AWG LSHF Sheath
20AWG Stranded TACW, PE Insulation, TACW Braiding 95% Coverage, LSHF Sheath. (Black) O.D 4.95mm |
![](../images/View_Construction.jpg) |
|
|

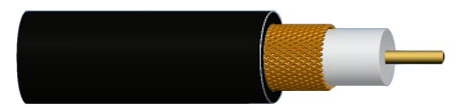

C2010063111 (RG59BU(84%) *Reference to Belden 9244 Coaxial Cable 75ohm RG59U 22AWG PVC Sheath
22AWG Solid CCS, PE Insulation, PACW Braiding 84% Coverage, PVC Sheath. (Black) O.D 6.2mm |
![](../images/View_Construction.jpg) |
|
|
C2010064311 (RG59BU/LS) *Reference to Belden 9244 Fire Retardant Coaxial Cable 75ohm RG59U 22AWG LSHF Sheath
22AWG Stranded TACW, PE Insulation, TACW Braiding 84% Coverage, LSHF Sheath. (Black) O.D 6.2mm |
![](../images/View_Construction.jpg) |
|
|
C2010065111 (RG59U/AL) *Reference to Belden 9104N Coaxial Cable 75ohm RG59U 20AWG PVC Sheath
20AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 65% Coverage,
PVC Sheath. (Black)
O.D 6.2mm |
![](../images/View_Construction.jpg) |
|
|
C2010099311 (RG59UAL/LS) *Reference to Belden 9104N Fire Retardant Coaxial Cable 75ohm RG59U 20AWG LSHF Sheath
20AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 65% Coverage,
LSHF Sheath. (Black)
O.D 6.2mm |
![](../images/View_Construction.jpg) |
|
|

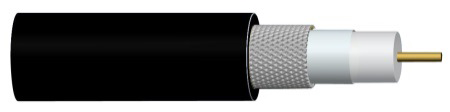

C2010084111 (RG6U) *Reference to Belden 9116N Coaxial Cable 75ohm RG6U 18AWG PVC Sheath
18AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 60% Coverage,
PVC Sheath. (Black)
O.D 6.8mm |
![](../images/View_Construction.jpg) |
|
|
C2010057311 (RG6U/LS) *Reference to Belden 9116N Fire Retardant Coaxial Cable 75ohm RG6U 18AWG LSHF Sheath
18AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 60% Coverage,
LSHF Sheath. (Black)
O.D 6.8mm |
![](../images/View_Construction.jpg) |
|
|
C2010100111 (RG11(60%)) *Reference to Belden 1523A Coaxial Cable 75ohm RG11U 14AWG PVC Sheath
14AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 60% Coverage,
PVC Sheath. (Black)
O.D 10.0mm |
![](../images/View_Construction.jpg) |
|
|
C2010101311 (RG11/LS) *Reference to Belden 1523A Fire Retardant Coaxial Cable 75ohm RG11U 14AWG LSHF Sheath
14AWG Solid CCS, Foam PE Insulation, Bond Al. Foil, AW Braiding 60% Coverage,
LSHF Sheath. (Black)
O.D 10.0mm |
![](../images/View_Construction.jpg) |
|
|
|
|
|
|
|
