Composite Cable
5
Result |
|
|

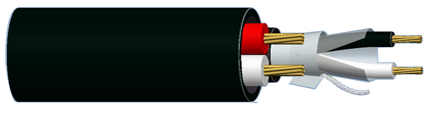

C7100058111
Composite CONTROL, Power or others application
One Control - Two Single Core
Twisted Pair Shield Cable
20AWG Stranded PACW, Twisted Pair, PVC Insulation, Foil & Drain Wire, PVC Sheath (Black)
Two Single Core
14AWG Stranded PACW, PVC Insulation (Red)
14AWG Stranded PACW, PVC Insulation (White)
PVC Outer Sheath (Black)
O.D 10.6mm
|
 |
|
|

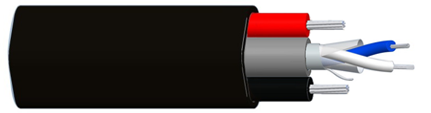

C7100024111
Composite CONTROL, Power or others application
One Control - Two Single Core
Twisted Pair Shield Cable
20AWG Stranded TACW, Twisted Pair, PP Insulation, Foil & Drain Wire, PVC Sheath (Grey)
Two Single Core
16AWG Stranded TACW, PVC Insulation (Red)
16AWG Stranded TACW, PVC Insulation (Black)
PVC Outer Sheath (Black)
O.D 6.0 x 12.8mm
|
|
|
|
C7100020333
Composite CONTROL, Power or others application
One Control - Single Core
Two Twisted Pairs Shield Cable
22AWG Stranded TACW, 2 Twisted Pairs, PP Insulation, Foil & Drain Wire, PVC Sheath (Grey)
Single Core
14AWG Stranded PACW, PVC Insulation (Yellow/Green Stripe)
PVC Outer Sheath (Grey)
O.D 6.8 x 10.2mm
|
|
|
|

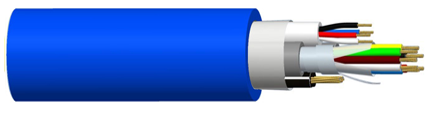

C7100079166
Composite CONTROL, Power or others application
Two Control - One Multi-core Shield - One Parallel
One Control Cable
21AWG Stranded PACW, 4 Cores, PVC Insulation, PVC Sheath (White)
One Control Cable
21AWG Stranded PACW, 6 Cores, PVC Insulation, PVC Sheath (Light Grey)
One Multi-core Shield Cable
21AWG Stranded PACW, 7 Cores, PVC Insulation, Foil & Drain Wire, PVC Sheath (Grey)
One Parallel Cable
19AWG Stranded PACW, 2 Cores, PVC Insulation, PVC Sheath (Black/White Stripe)
Filler, PVC Outer Sheath (Blue)
O.D 15.6mm
|
|
|
|

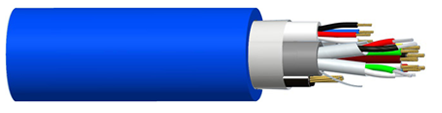

C7100080166
Composite CONTROL, Power or others application
Two Control - Two Twisted Pairs Shield - One Parallel
One Control Cable
21AWG Stranded PACW, 4 Cores, PVC Insulation, PVC Sheath (White)
One Control Cable
21AWG Stranded PACW, 6 Cores, PVC Insulation, PVC Sheath (Light Grey)
Two Twisted Pairs Shield Cable
22AWG Stranded TACW, 2 Twisted Pairs, PP Insulation, Foil & Drain Wire, PVC Sheath (Grey)
One Parallel Cable
19AWG Stranded PACW, 2 Cores, PVC Insulation, PVC Sheath (Black/White Stripe)
Filler, PVC Outer Sheath (Blue)
O.D 14.6mm
|
|
|
|
|
|
|
|
|
|
