Composite Cable
4
Result |
|
|

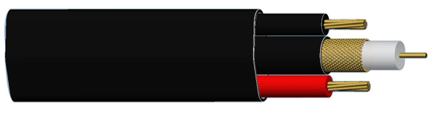

C7100001111
Composite COAXIAL, Power, Control or others application
One Coaxial - Two Single Core
Coaxial Cable Type RG59/U
23AWG PACW, Solid PE Insulation, PACW Braid Shield (84% Coverage), PVC Sheath (Black)
Two Single Core
19AWG Stranded PACW, PVC Insulation (Red)
19AWG Stranded PACW, PVC Insulation (Black)
PVC Outer Sheath (Black)
O.D 7.8 x 13.0mm
|
 |
|
|

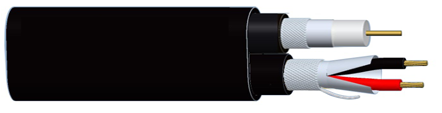

C7100055111
Composite COAXIAL, Power, Control or others application
One Coaxial - One Twisted Pair Shield
Coaxial Cable Type RG6/U
18AWG PACW, Foam PE Insulation, Foil & TACW Braid Shield (95% Coverage), PVC Sheath (Black)
Twisted Pair Shield Cable
17AWG Stranded PACW, Twisted Pair, PVC Insulation, Foil, Drain Wire & TACW Braid Shield (90% Coverage), PVC Sheath (Black)
PVC Outer Sheath (Black)
O.D 9.0 x 16.0mm
|
|
|
|

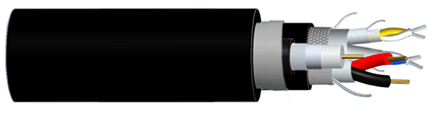

C7100010111
Composite COAXIAL, Power, Control or others application
One Coaxial - Three Twisted Pairs Shield
Coaxial Cable Type RG6/U
18AWG PACW, Foam PE Insulation, Foil & TACW Braid Shield (95% Coverage), PVC Sheath (Black)
Twisted Pair Shield Cable
14AWG Stranded PACW, Twisted Pair, PE Insulation, Foil, Drain Wire & TACW Braid Shield (90% Coverage), PVC Sheath (Black)
Two Twisted Pairs Shield Cable
20AWG Stranded TACW, 2 Twisted Pairs, Foam PE Insulation, Foil, Drain Wire & TACW Braid Shield (90% Coverage), PVC Sheath (Black)
Filler, PVC Outer Sheath (Black)
O.D 22.4mm
|
|
|
|

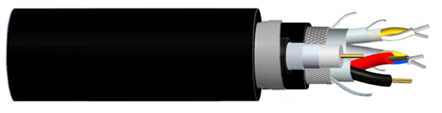

C7100056111
Composite COAXIAL, Power, Control or others application
One Coaxial - Three Twisted Pairs Shield
Coaxial Cable Type RG6/U
18AWG PACW, Foam PE Insulation, Foil & TACW Braid Shield (95% Coverage), PVC Sheath (Black)
Twisted Pair Shield Cable
16AWG Stranded PACW, Twisted Pair, PVC Insulation, Foil, Drain Wire & TACW Braid Shielded (90% Coverage), PVC Sheath (Black)
Two Twisted Pairs Shield Cable
22AWG Stranded TACW, 2 Twisted Pairs, Foam PE Insulation, Foil, Drain Wire & TACW Braid Shield (90% Coverage), PVC Sheath (Black)
Filler, PVC Outer Sheath (Black)
O.D 18.9mm
|
|
|
|
|
|
|
|
|
|
